BUILT UPON LEGENDARY COATS STANDARDS – BUILT TO LAST.

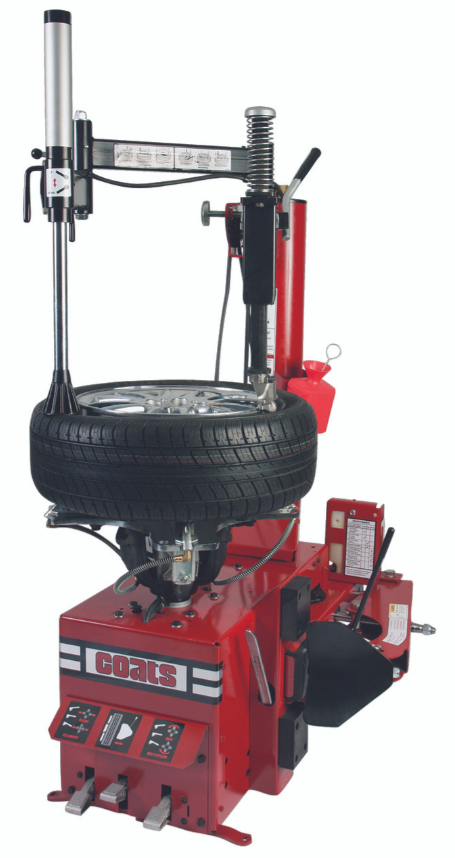

The Coats RC Series Rim Clamp tire changers are built upon the high standards of the legendary Coats Rim Clamp tire changer. The RC Robo-Arm keeps the top bead in the drop center during mounting, allowing technicians to change difficult wheels with ease.
Top Features:

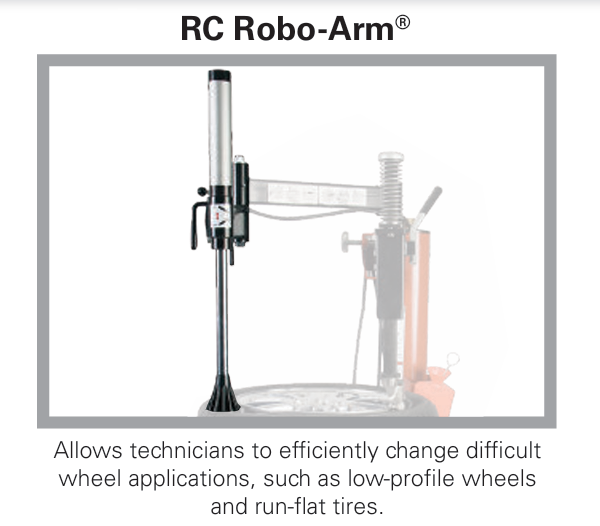

RC Robo-Arm Helper Device |Allows technicians to efficiently change difficult wheel applications, such as low-profile wheels and run-flat tires.

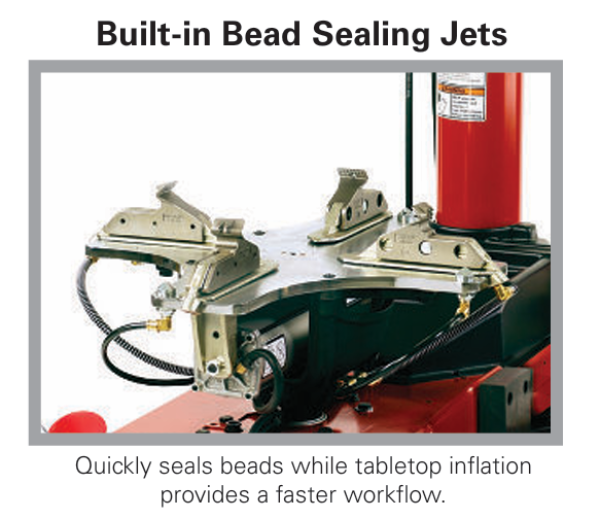

Built-In Bead Sealing Jets |Quickly seals beads while tabletop inflation provides a faster workflow.

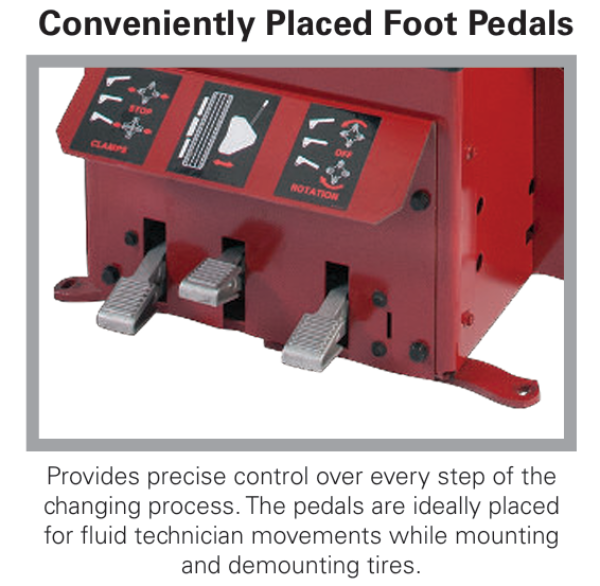

Conveniently Placed Foot Pedals |Provide precise control over every step of the changing process. The pedals are ideally placed for fluid technician movements while mounting and demounting tires.
Features:
Inflation Gauge |The easy-to-read gauge accurately displays tire pressure and includes a damage resistant Lexan faceplate. You can easily inflate from 0 to 60 PSI, with a built-in pressure limiter, ensuring technician safety.

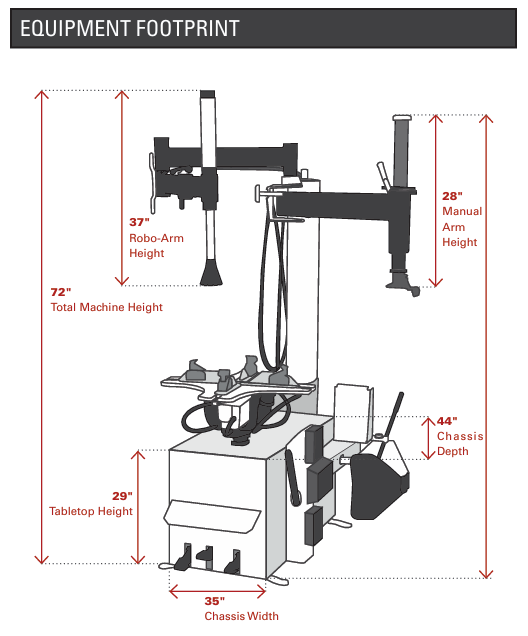

Compact Chassis |The machine fits easily into limited space applications with its small footprint.
Manual Swing Arm |The Manual Swing Arm is easily adjusted so that the Coats Duckhead Mount/Demount Tool is properly fitted to the tire rim. This will reduce the risk of damage when mounting and demounting the tire.

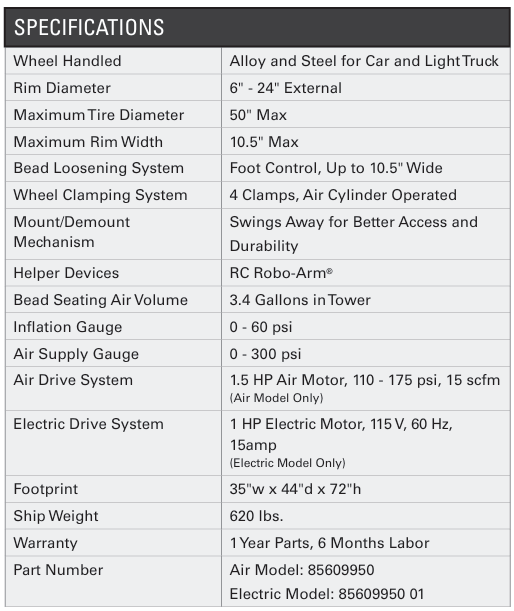

Specifications:
Rim Diameter | 6"–24" External
Rim Width | 10.5"
Tire Diameter | 50"
Drive System | 1 HP Electric Motor or 1.5 HP Air Motor
